- The LiDAR focusing system makes focusing easier for hand-held shooting, without relying on the surface texture of the subject. This is especially useful in low-light environments and results in exceptional focusing capabilities.

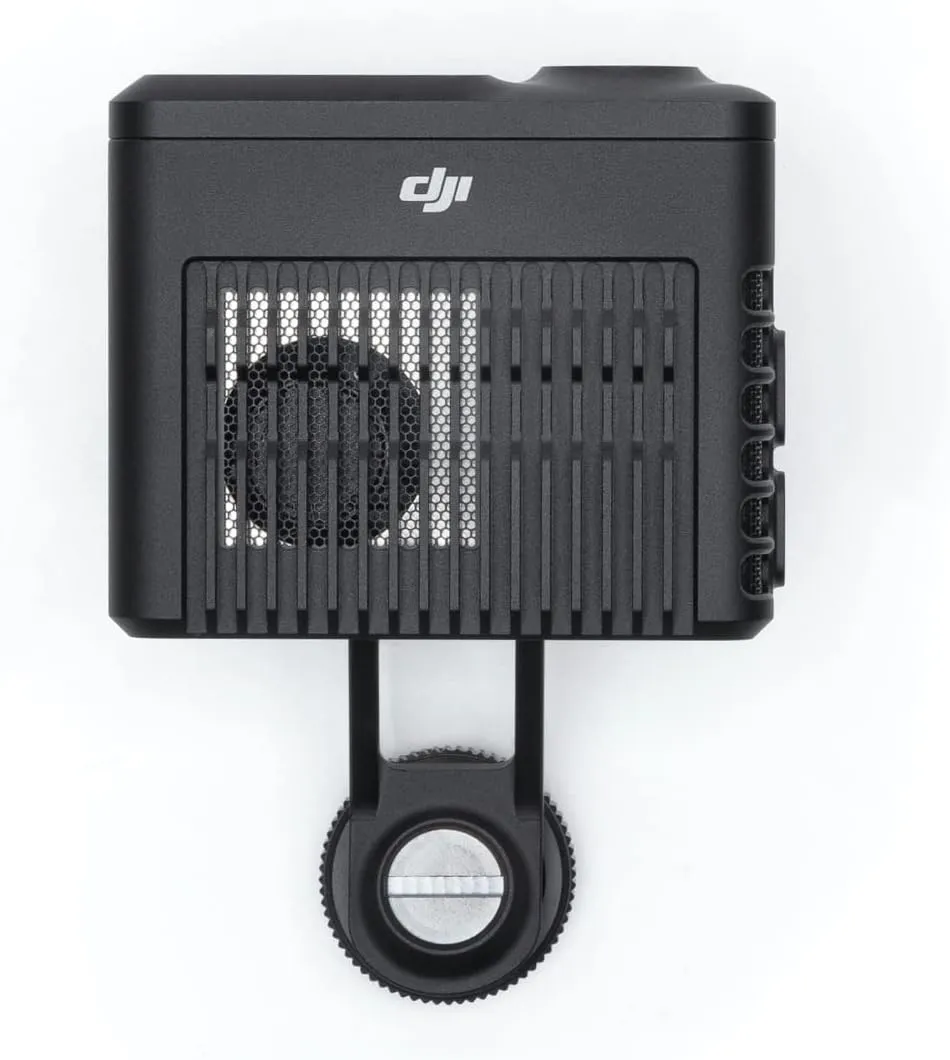

- The new LiDAR Range Finder (RS) can project 43,200 ranging points, detect within a 14-meter range, [1] and has a built-in camera with an equivalent focal length of 30 mm and a wide FOV of 70°, which can handle the focusing needs of most scenarios. Pairing with the new Focus Motor (2022) also makes autofocus on manual lenses possible after calibration.
- 14m range and has a built-in camera with a 30mm-equivalent focal length and 70° FOV. Enables autofocus on manual lenses and enhances tracking.
- In The Box：LiDAR Range Finder (RS) × 1, Multi-Camera Control Cable (USB-C, 30 cm) × 1, LiDAR Control Cable (USB-C, 30 cm) × 1.
- Compatibility: DJI RS 4 Pro, DJI RS 3 Pro
Accessory Port:
Cold Shoe
1/4"-20 Mounting Hole
USB-C Port
USB-C Power/CVBS/CAN Data Port
Image Sensor:
Resolution: 448×298 on the touchscreen
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Focal Length: 30mm equivalent
ToF sensor:
Resolution: 240×180
Sensing Range: 0.5-14 m
Distance Error: 1%
Machine Learning:
Can recognize up to five targets at the same time, and choose one to follow.
Identification Distance: 9 m
Electrical Properties:
Power Consumption: 6.8 W
Input: 7 to 16 V
Operating Temperature:
-20° to 45°C (-4° to 113° F)
Mechanical Properties:
Dimensions: 66×57×24 mm (L×W×H)
Weight: Approx. 130 g
Mounting Plate Height: 30 mm
Lenses that Do Not Needs Calibration:
DZOFILM Vespid Cyber 35/50/75 mm
