- 【Function】This camera control cable is used to connect your camera to the Camera Control Port of DJI RSC 2 for camera control. To control the camera's video recording and photo functions, as well as to trigger the autofocus function.
- 【 Compatible】Camera Shutter Release Cable is suitable for DJI Ronin SC 2; Suitable for Sony Cameras with Multi-USB port, such as RX100 V, A6000, A6300, A6400, A6500, A9, A7, A7S, A7/A7S/A7R II, A7/A7R III, A7R IV, A7S III, A9 II, etc.
- 【Length】This RSS Control Cable total length is 30cm.
- 【Material】RSS Control Cable is made of high quality material PVC which means it used for long time and it is much safe
- 【Convenient】Lightweight and Durable, easy to carry.
Introduction：
This RSS cable connects the camera control port of Ronin-SC to the Multi Port on a for S0NY camera to control the camera
Lightweight and Durable, easy to carry and store
The camera control cable may enable the stabilizer to control compatible cameras to: Capture photo; Start/stop recording video; Zoom control (digital or optical); Trigger auto focusNote: Above functions depends on the camera and stabilizer, not our cables. Only 'Capture photo' & 'Start/Stop Recording' functions works for some old cameras.

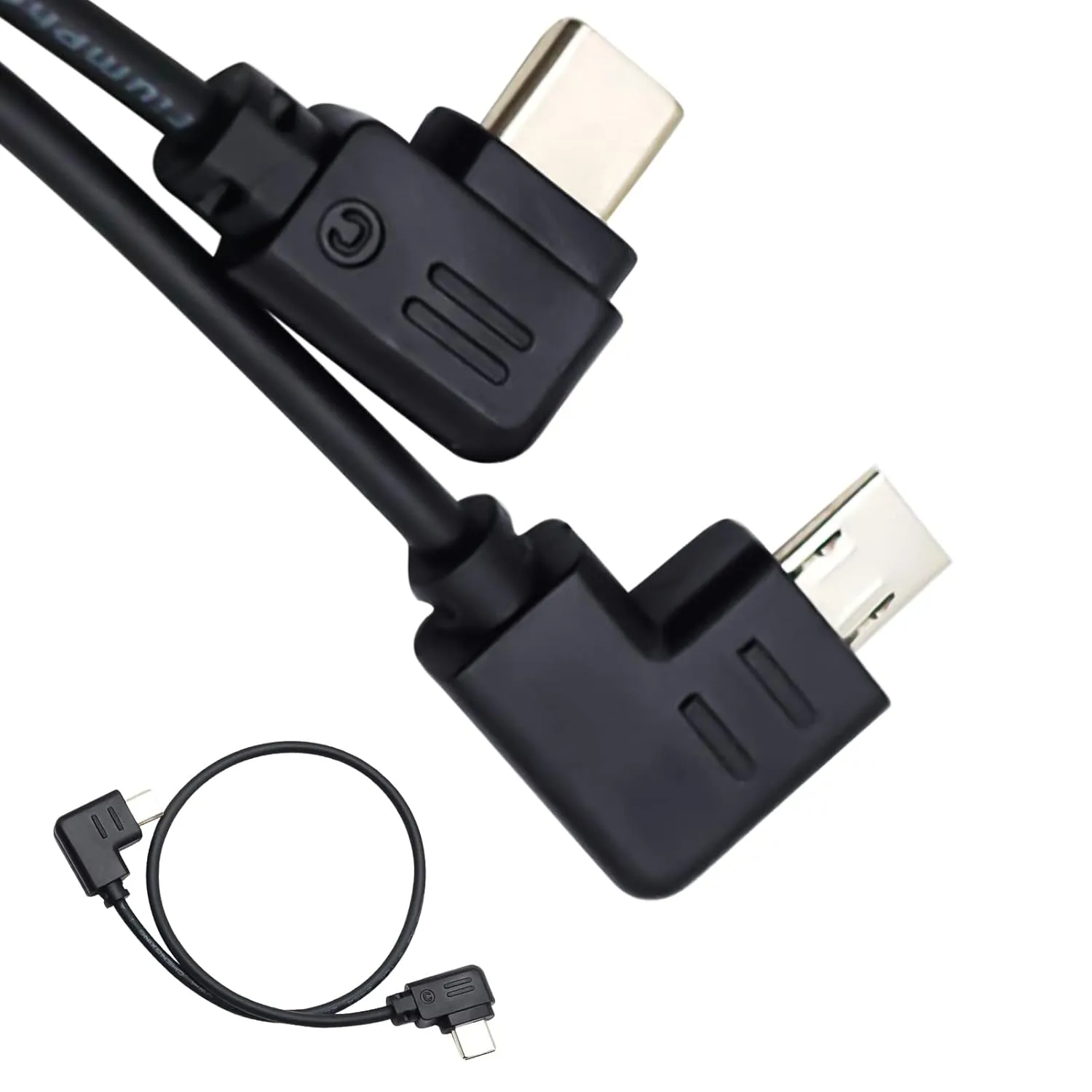

Specification：
Color: Black
Material: PVC
Length: About 11.8 inch (30cm)
One End: USB-C, also called Type-C
Another End: Multi-USB, also called S2 as popular abbr in business
How to use？
1. Connect the cable to Camera and Stabilizer
2. Turn on the stabilizer and select specified camera in the setting
3. Switch on the camera
4. If not work, re-start the stabilizer first and turn on the camera
5. When using a lens without the Power Zoom function, please activate the camera's digital zoom function to control the digital Zoom.
Specific setting method: Select menu--select settings--select zoom settings--select digital zoom.
6. Notice: When you connect the cable to your camera, Set the "USB Connection" function of the camera to "Computer Remote". The specific setting method is as follows:
Select "menu"-Select "Settings" - select "USB connection"-- select "computer remote control”.
How to operate (Press the red button on the stabilizer)
1. Focus: half-press of the red button to activate focus
2. Shoot: Press the red button for 2 seconds means photography one time
3. Making video: click red button and then let go on the stabilizer to start recording
Suitable for
For DJI Ronin-SC 2 stabilizer
Used to control for S0NY Cameras with Multi-USB port, such as RX100 V, A6000, A6300, A6400, A6500, A9, A7, A7S, A7/A7S/A7R II, A7/A7R III, A7R IV, A7S III, A9 II, etc.
Package Include
1 X Control Cable
- Product Dimensions : 7.87 x 5.91 x 0.79 inches; 0.63 ounces
- Date First Available : April 30, 2021
- Manufacturer : LINGO
